- Place of Origin: fujian china
- Brand Name: yingnuo
- Model Number: IF-G
1 four-way fluorescence optical fiber temperature measurement
2 TFT true color LCD screen

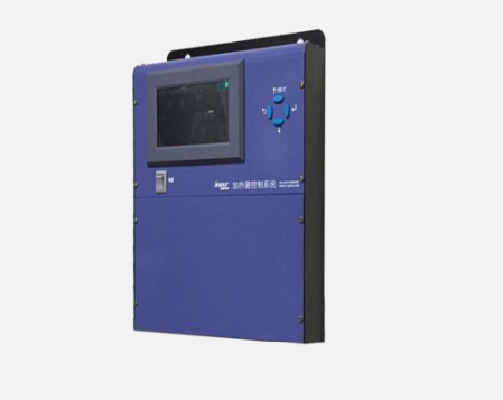

3 sheet metal enclosure, hanging installation
4 include dry thermostat all functions
TFT LCD display, can provide all the information needed to users.
Power off the electricity, save time temperature data.
Provide a pair of fan active contact output, and can be manually controlled contact closure or turn on the fan.
Provide overtemperature alarm functions, and provides a pair of overtemperature alarm passive output normally open contacts.
Provide overtemperature tripping functions, and provides a pair of overtemperature tripping passive output normally open contacts.
Provide thermostat failure alarm or fiber optic sensor fault alarm function, and to provide a pair of passive output fault normally open contacts.
Provide travel switch cupboard door access contact all the way, cupboard door is opened, the thermostat to provide voice call the police.
According to customer needs, provide RS485 serial communication function.
According to customer needs, provide 4 ~ 20 ma analog output current function.
By the end of the ST connector, fiber optic cable, fiber optic probe WenDuan of three parts. ST connector is connected to the photoelectric module part; Optical fiber
Cable for the optical parts, internal for quartz optical fiber, quartz fiber external coating layer and cladding, the external teflon cases; At the end of the
End feeling WenDuan contains temperature of rare earth materials, used to produce light signal containing temperature; Optical fiber whole 200 ℃ high temperature resistant, appearance straight
The diameter is 3 mm. Long-term bending radius of 13.2 cm. Short-term bending radius of 4.4 cm.
The photoelectric conversion module for electronic products. Send, receive and parse the fluorescence optical fiber back to the light signal containing temperature information. Provide two
Phi is 2 mm mounting holes. DC5V power supply, USART serial data output temperature. Each module contains independent address, can network
- Place of Origin: fujian china
- Brand Name: yingnuo
- Model Number: IF-G
Power supply: AC220V or AC380V ( 10%, 15%), can be customized according to customer's special requirements
Temperature measurement range: - 30 ℃ ~ 200 ℃
Accuracy: / - 1 ℃ or 1% of the full range
Resolution: 0.1 ℃
Relay capacity: the fan contact output capacity: 6 a / 250 v AC; Control the output contact capacity: 6 a / 250 v AC; 6 a / 30 VDC (resistance);
Channel way: 4
Optical fiber probe fiber types: imported quartz optical fiber
Optical fiber size: diameter of 3 mm; Length of the standard is 5 m (customizable);
Test standard: fiber optic lead to ground distance of 0.4 m, under the condition of resistance power frequency voltage 100 kv, duration of 5 min.
Appearance of size: size: 260 mm * 320 mm * 320 mm installation size (distance) mounting holes: 160 mm * 280 mm test standard: JB/T7631-2005 transformer electronic thermostat industry standards
