- Place of Origin: fujian china
- Brand Name: yingnuo
- Model Number: IF-G
1real-time measuring temperature of the object to be tested directly
2 it has strong immunity to electromagnetic interference
3 high voltage insulation, flameproof explosion-proof
4 single point temperature measurement, the digital signal output
5 for narrow space temperature (probe the minimum diameter of 600 um)
IF -g fluorescence optical fiber temperature sensor for a single point of contact temperature measurement products. Because of its characteristics of the high pressure is not affected by electromagnetic interference, tolerance, very suitable for high voltage and strong magnetic field, flammable
Explosive temperature measurement occasions. Such as rail transportation of dry type transformer and other electrical equipment high-pressure hot temperature, high voltage switch cabinets, photovoltaic devices contact special environment such as temperature measurement.
IF -g fluorescence optical fiber temperature sensor is also independent of the temperature measuring system, as an independent sensor parts embedded in the days of hua sharp company's optical fiber thermometer table, also as

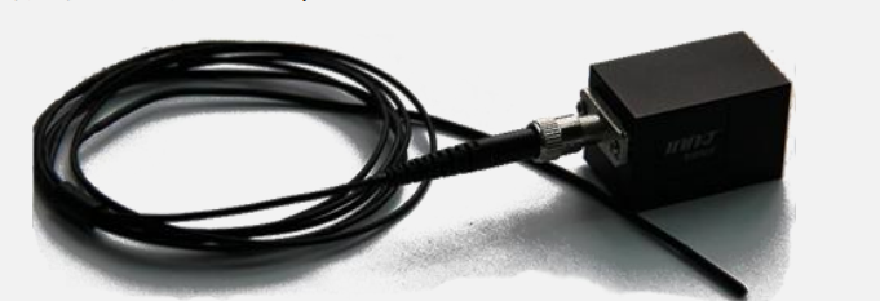

Independent of temperature measurement products access to other instrument or system, the system to provide the DC5V power and USART serial interface. Optical fiber probe By the end of the ST connector, fiber optic cable, fiber optic probe WenDuan of three parts. ST connector is connected to the photoelectric module part; Optical fiber
Cable for the optical parts, internal for quartz optical fiber, quartz fiber external coating layer and cladding, the external teflon cases; At the end of the
End feeling WenDuan contains temperature of rare earth materials, used to produce light signal containing temperature; Optical fiber whole 200 ℃ high temperature resistant, appearance straight
The diameter is 3 mm. Long-term bending radius of 13.2 cm. Short-term bending radius of 4.4 cm. The photoelectric conversion
The module
The photoelectric conversion module for electronic products. Send, receive and parse the fluorescence optical fiber back to the light signal containing temperature information. Provide two
Phi is 2 mm mounting holes. DC5V power supply, USART serial data output temperature. Each module contains independent address, can network
- Place of Origin: fujian china
- Brand Name: yingnuo
- Model Number: IF-G
Working power supply: DC5V
Temperature measurement range: - 30 ℃ ~ 200 ℃
Accuracy: / - 1 ℃ or 1% of the full range
Resolution: 0.1 ℃
Communications: USART serial port output, batch when using, need to set up independent correspondence address. The updating cycle of sampling rate of 9600, the temperature is 300 ms.
This sensor calibration method: without calibration, also without user manual calibration, system adopts adaptive measurement, without LD calibration value.
Optical fiber probe fiber types: imported quartz optical fiber
Optical fiber size: diameter of 3 mm; Length of the standard is 5 m (customizable);
Test standard: fiber optic lead to ground distance of 0.4 m, under the condition of resistance power frequency voltage 100 kv, duration of 5 min.
The photoelectric conversion
The module
Size: 44 mm * 22 mm * 22 mm test standard: JB/T7631-2005 transformer electronic thermostat industry standards
