- Place of Origin: fujian china
- Brand Name: yingnuo
- Model Number: IF-C
1 three-channel fluorescence optical fiber temperature measurement
2 standard DIN rail installation
3analog current output and RS485 output temperature signal

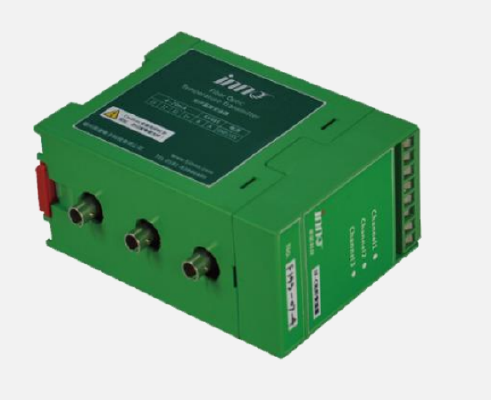

IF - C temperature transmitter contains three way IF -g fluorescence optical fiber temperature
Sensors. Suitable for transmitting transmission temperature over a long distance. Standard guide
Rail installation. Three way temperature status lights. The output signal with
The terminal output. Compact design.
By the end of the ST connector, fiber optic cable, fiber optic probe WenDuan of three parts. ST connector is connected to the photoelectric module part; Optical fiber
Cable for the optical parts, internal for quartz optical fiber, quartz fiber external coating layer and cladding, the external teflon cases; At the end of the
End feeling WenDuan contains temperature of rare earth materials, used to produce light signal containing temperature; Optical fiber whole 200 ℃ high temperature resistant, appearance straight
The diameter is 3 mm. Long-term bending radius of 13.2 cm. Short-term bending radius of 4.4 cm.
The photoelectric conversion module for electronic products. Send, receive and parse the fluorescence optical fiber back to the light signal containing temperature information. Provide two
Phi is 2 mm mounting holes. DC5V power supply, USART serial data output temperature. Each module contains independent address, can network.
- Place of Origin: fujian china
- Brand Name: yingnuo
- Model Number: IF-C
Working power supply: DC24V
Temperature measurement range: - 30 ℃ ~ 200 ℃
Accuracy: / - 1 ℃ or 1% of the full range
Resolution: 0.1 ℃
Communication: communication methods 1: RS485 interface, the Modbus communication interface; Communication methods 2: three road 4 ~ 20 ma analog output current.
Channel goes: 3 road
Optical fiber probe fiber types: imported quartz optical fiber
Optical fiber size: diameter of 3 mm; Length of the standard is 5 m (customizable).
Test standard: fiber optic lead to ground distance of 0.4 m, under the condition of resistance power frequency voltage 100 kv, duration of 5 min.
Size: 107.5 mm * 75 mm * 45 mm test standard: JB/T7631-2005 transformer electronic thermostat industry standards
IF - C temperature
